ChromENERGY for Control of Performances and C1C6+ Monitoring

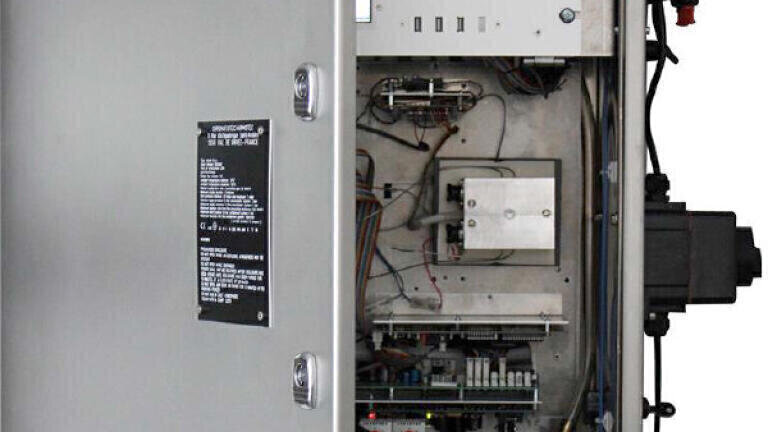

ChromEnergy gas analyser is designed for the measurement of hydrocarbons. Using a Thermal Conductivity Detector (TCD), this analyser is the perfect tool to detect and quantify hydrocarbons from C1 to C6+. This equipment works with isothermal mode. Coupled with the last version of Chromatotec’s software (Vistachrom), the instrument is able to provide calorific value and WOBBE index to the end user on automatic mode.

With its high sensitivity and robustness, the analyser is a perfect instrument for natural gas characterisation, with capabilities to quantify the hydrocarbons as iso- or linear propane, butane, pentane (iso and linear) or hexane. When hexane is not present, performances and cycle time can be increased with reduce cycle time.

In term of functions, end user has defined some individual alarms per type of molecule. Thanks to software capabilities, C1C6+ group has been created as additive parameter to check global profile and be warned when significant changes of concentration are observed. Thanks to the embedded PC and Modbus data transfer protocol, user check results from dedicated Supervision center offering results at a glance. The 4-20 mA output option allows to adjust the process by direct integration of the signal on the process.
