Water/Wastewater
New Low-Cost Water Radar
Mar 23 2011

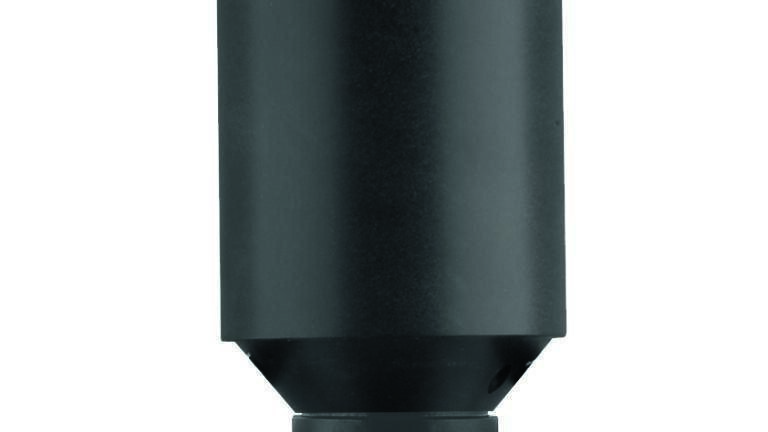

The VEGAPULS WL 61 level sensor from Vega (Germany) is primarily for water and sewage level measurement. Radar technology offers considerable advantages over ultrasonic devices; measurement is independent of temperature, high winds, fog or rain. New generation, high sensitivity radar electronics ensure security of measurement, even under turbulent, challenging surface conditions. A radar sensor offers higher accuracy - where in open channel flow, for example, the sun shining on ultrasonic transducers can create large temperature errors - especially when measured data is factored through flow equations. The focused radar signal means it can be deployed into crowded pumping chambers and the sealed cable and robust housing provide a high protection rating of IP 66/68 (1 bar). The variety of mounting options easily mechanically integrate into existing applications, and units can directly connect to existing field-bus systems or loop-powered from a signal conditioning instrument for pump control. Integrated sensor linearization curves can be programmed in using free FDT/DTM software, allowing direct output of flow rate in open channels. The new VEGAPULS WL 61 was conceived and developed to offer a real alternative to ‘ultrasonics’ in the water industry, both technically and commercially.
