Portable/Field Testing

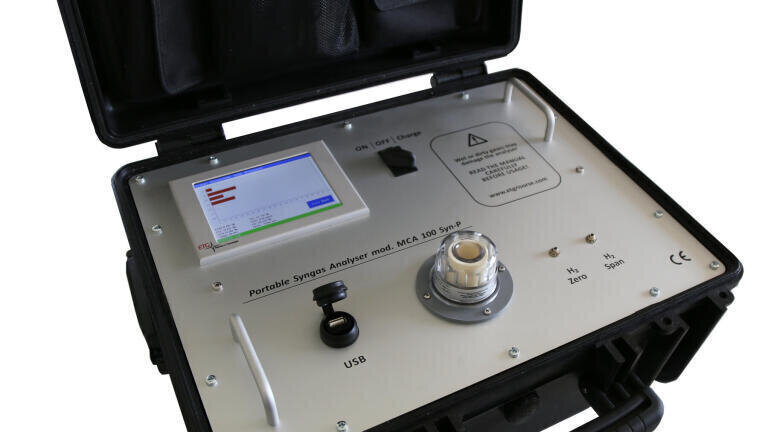

New Portable Analyser Biogas and Syngas ETG MCA 100 Syn P

Nov 06 2017 Comments 0

The new portable analyser Biogas and Syngas ETG MCA 100 Syn P is the ideal solution for the measurement and analysis processes for the Biogas to Syngas and burning due to its robustness , accuracy, reliability , and enhance performance.
Unlike other analysers of the same type ETG MCA 100 Syn P performs the analysis of different compounds such as CO, CO2, CH4 NDIR technology with unique optical IR bench . The concentration of O2 by E.C. as well the CnHm, N2 and Calorific value.

The measurement of the concentration of Hydrogen is made ​​highly reliable thanks to the sensor measurement of Hydrogen based on TCD principle of operation ( thermal conductivity ) ; therefore not used for the measurement of Hydrogen , electrochemical cells or other sensors that could interfere with the measurements of Hydrocarbons. Like the versions biogas analyzer MCA 100 Syn- remote- P is standard on PCs and Smartphones (Android , iOS , Windows , etc. .. ), or via a LAN, as well as USB (Wi -Fi as an option).
ETG brings in its laboratories , specific corrections for the measurement of hydrogen into a mixture containing hydrocarbons ( which is precisely the Syngas ) , so as to obtain a measurement as accurate as possible.
Inside there is a suction pump can be activated or not by software, a valve for regulating the flow with the video indication , an in-line filter for the removal of dust , in addition to the optical bench and the electronics required to operate .
The analyzer saves the data in a directory inside the instrument. Csv , dividing and subdividing the log file for the same in different folders named as the current date of analysis; to download the data , the user only needs to insert a memory stick into the mail panel , select the log file in question ( which will be shown with date and time ) and the system will automatically download the data on the pen drive , removing the original file from the internal memory , avoiding the risk of filling the memory.
The analyser is supplied in an impact-resistant case , with degree of protection IP67.
