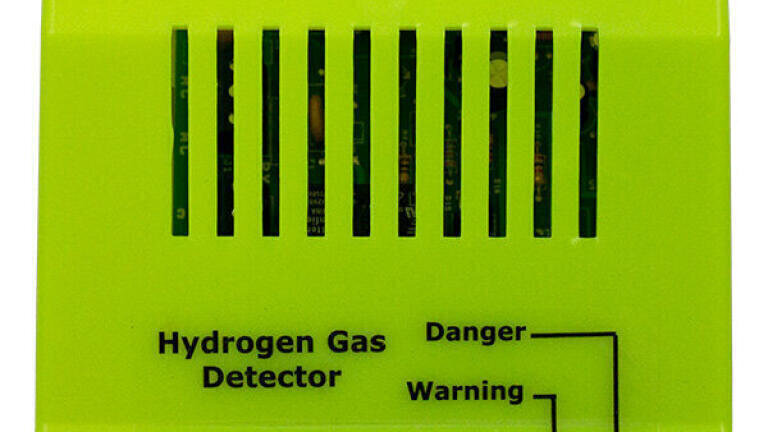

Hydrogen Gas Detector for AC and DC Applications

The HGD-2000 Hydrogen Gas Detector by Eagle Eye Power Solutions (USA) is now available for DC power sources in addition to AC power. The DC-powered HGD-2000 gas detectors are commonly found in telecoms, in addition to utilities and other battery charging and storing rooms. To learn more about the battery industry’s most popular mounted gas detector please visit Eagle Eye Power Solutions website.

The Eagle Eye HGD-2000 Hydrogen Gas Detector allows the user to monitor hydrogen gas buildup in storage rooms and facilities that house batteries - including forklifts, golf carts, backup power supplies, and battery charging stations. Lead-acid batteries on charge emit hydrogen gas after reaching the 80% recharge point. When mixed with enough air, hydrogen becomes a highly flammable gas that can ignite easily with just a spark, destroying equipment and harming personnel. The lower explosive level (LEL) for hydrogen is 4.1% by volume. The dangers of hydrogen gas explosion are eliminated by using the HGD-2000 hydrogen gas detector.

The HGD-2000 is simple and easy-to-use and easy-to-install for both AC & DC power sources. If the concentration of hydrogen gas in the air surrounding the sensor reaches 1% by volume, the yellow LED will light and the 1% internal relay will close. A four second delay prevents false activation. If the concentration reaches 2%, the red LED will flash, the internal 80 db warning alarm will sound, and the 2% internal relay will close. The HGD-2000 is an inexpensive, preventative tool for equipment and personnel protection where hydrogen gas buildup can occur.

Eagle Eye Power Solutions is committed to offering the best critical battery monitoring, testing and charging solutions in the industry with unbeatable support. Eagle Eye offers 24/7 battery monitoring systems, portable battery resistance testers, digital hydrometers, AC & DC Load Banks, Gas Detectors and other additional solutions for your testing needs. These IEEE-compliant products are guaranteed to not only meet, but exceed your battery testing requirements.
