Customized online-monitoring of industrial processes and waste water streams

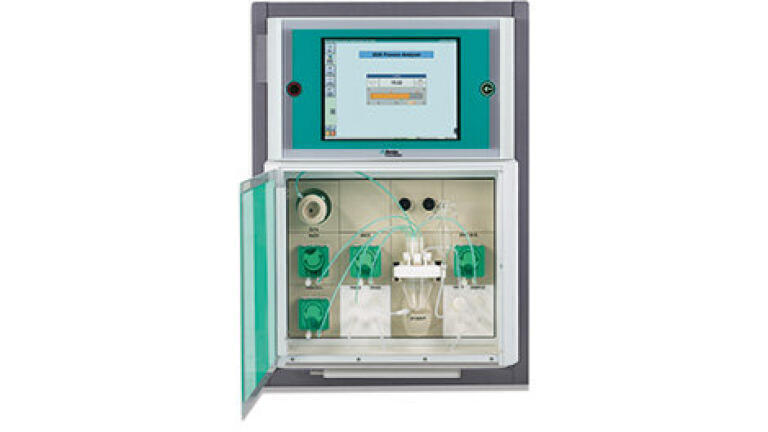

Metrohm Process Analytics presents the 2035 Process Analyzer, an integrated solution for 24/7 online-monitoring of critical chemical parameters in industrial processes and wastewater streams. The new system is entirely modular by design enabling custom configurations for monitoring single or multiple process streams.

Three basic configurations for titrimetric, photometric, and thermometric measurements

The 2035 Process Analyzer comes in three basic configurations for potentiometric, photometric, and thermometric measurements. Any of these can be combined with additional measuring techniques such as pH and/or conductivity measurement.

Custom configurations possible

Due to modular architecture of the wet part, there is an analyzer configuration for each specific application challenge. A large array of functional modules such as burettes, pumps, vessels, valves, and more is available.

Robust design (IP66)

Strict separation of wet part and electronics ensures safe operation in harsh environments. The electronics part is housed within non-corrosive epoxy-coated stainless steel.

Virtually unlimited sample conditioning options

Metrohm Process Analytics provides virtually any sample pre-conditioning system, such as cooling or heating, pressure reduction, degassing, filtration, and more.

Sophisticated data communication

Ethernet TCP/IP Network communication and remote operation, web services, MODBUS, analog outputs, digital outputs to transmit results, and alarm status signals. Result export to USB.
