New Magnetic Inductive Flowmeter Unveiled

JUMO GmbH & Co. KG (Germany) is a renowned specialist for temperature and pressure measurement technology as well as for liquid analysis. The magnetic inductive flowmeters JUMO flowTRANS MAG S01 and JUMO flowTRANS MAG H01 represent an important addition to the measurement technology portfolio.

Magnetic inductive flow metering is one of the most common measurement methods in the world. This popularity can be attributed to the suitability for a wide range of applications, high degree of measuring accuracy, and easy startup.

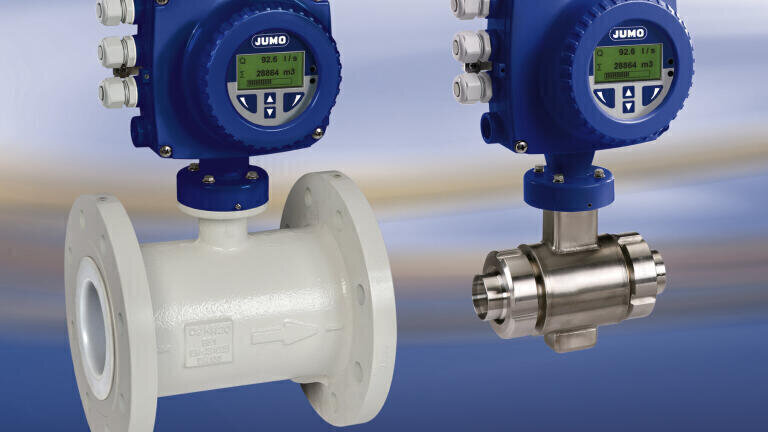

The JUMO flowTRANS MAG S01 constitutes the standard version of the new series. It is available for nominal widths ranging from DN 10 to DN 300. The JUMO flowTRANS MAG H01 with nominal widths of DN 3 to DN 100 was especially developed for hygienic applications. For both versions, the conductivity of the measurement medium must be at least 5 µS/cm; the maximum temperature lies at 130°C, depending on the version. Both flowmeters are available either as a compact device or with a separate transmitter.

These devices are simple and convenient to configure, either on the device itself or using PC software. The transmitter automatically detects the sensor and, when the auxiliary energy is switched on, the data from the SensorMemory is loaded automatically. Operation occurs using a freely configurable, backlit display. The transmitter electronics and the sensors can be checked for proper function and the operating conditions can be monitored through integrated diagnostic functions.
